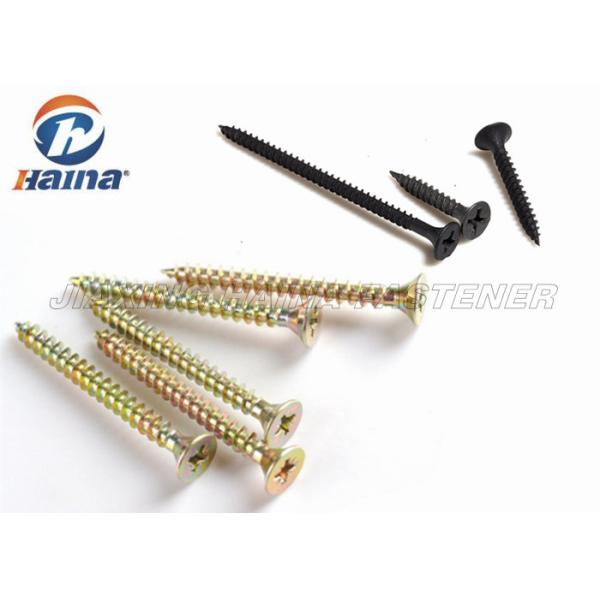

C1022A Zinc Plated Flat Head Carbon Steel Self Tapping Screws
Description:
A chipboard screw or particleboard screw is one type of a self tapping screw with a thin fine or coarse threads. Chipboard is a made up of resin and wood dust or wood chips, so chipboard screws are made to grip this composite materials and to resist withdrawing.They are made of carbon steel or stainless steel and then galvanized
Chipboard screws (also known as particleboard screws) are essentially self tapping with a thin shaft and very coarse thread to enable them to screw into particle board and softwood normally without tapping a pilot hole.A chipboard screw or particleboard screw is a self tapping screw with a thin shaft and coarse threads.Chipboard screws were created to fasten low, medium and high density chip board. Because chipboard has no natural grain to resist the screw from withdrawing, these screws often have grippers around their head called nibs.
Available material :carbon steel, stainless steel, brass.Different shapes and materials of chipboard screws are common as well. The most common screws are made out of zinc, yellow zinc, brass or black oxide.Chipboard screws are often used for cabinetry and for flooring, and can be found in most large hardware stores. Specialty sized screws or screws made from uncommon materials can be purchased directly from suppliers.
Specification:
| Chipboard screw size |
| Diameter length | M3.0 | M3.5 | M4.0 | M4.5 | M5.0 | M6.0 |
| 12mm | M3.0 × 12 | M3.5 × 12 | - | - | - | - |
| 16mm | M3.0 × 16 | M3.5 × 16 | M4.0 × 16 | - | - | - |
| 20mm | M3.0 × 20 | M3.5 × 20 | M4.0 × 20 | - | - | - |
| 25mm | M3.0 × 25 | M3.5 × 25 | M4.0 × 25 | - | - | - |
| 30mm | M3.0 × 30 | M3.5 × 30 | M4.0 × 30 | - | M5.0 × 30 | - |
| 35mm | M3.0 × 35 | M3.5 × 35 | M4.0 × 35 | - | M5.0 × 35 | - |
| 40mm | M3.0 × 40 | M3.5 × 40 | M4.0 × 40 | M4.5 × 40 | M5.0 × 40 | M6.0 × 40 |
| 50mm | M3.0 × 50 | M3.5 × 50 | M4.0 × 50 | M4.5 × 50 | M5.0 × 50 | M6.0 × 50 |
| 60mm | - | - | M4.0 × 60 | M4.5 × 60 | M5.0 × 60 | M6.0 × 60 |
| 70mm | - | - | M4.0 × 70 | M4.5 × 70 | M5.0 × 70 | M6.0 × 70 |
| 80mm | - | - | - | M4.5 × 80 | M5.0 × 80 | M6.0 × 80 |
| 90mm | - | - | - | - | M5.0 × 90 | M6.0 × 90 |
| 100mm | - | - | - | - | M5.0 × 100 | M6.0 × 100 |
| 120mm | - | - | - | - | M5.0 × 120 | M6.0 × 120 |
| 140mm | - | - | - | - | - | M6.0 × 140 |
| 160mm | - | - | - | - | - | M6.0 × 160 |
| 180mm | - | - | - | - | - | M6.0 × 180 |
| 200mm | - | - | - | - | - | M6.0 × 200 |
Application:
1. Common length (around 40mm) chipboard screws are often used to join chipboard flooring to regular wood part
2. Long (about 130mm) chipboard screws can be used to fasten chipboard to chipboard when making cabinets.
3. It is widely used in structural steel industry, metal building industry, mechanical equipment industry, automobile industry, etc. Ideal for chipboards and wood, they are often used for cabinetry and for floors.
4. Small chipboard screws (around 1.5-3cm) can be used to fastened hinges to chipboard cabinetry.
Related Products:
Advantages:
1.Easy to screw in
2.High tensile strength
3.Deep and sharp thread for cutting through wood cleanly
4.Construction authorities approved
5.Long service life
